Features of the Apex3R Evo CNC Router

Contact us for more information

High quality at an affordable price

With the Apex3R Evo CNC router, you get a number of features standard with the machine that you normally only get when you buy much more expensive CNC routers. It’s all because of Kongsberg’s unique manufacturing processes that keep high quality affordable.

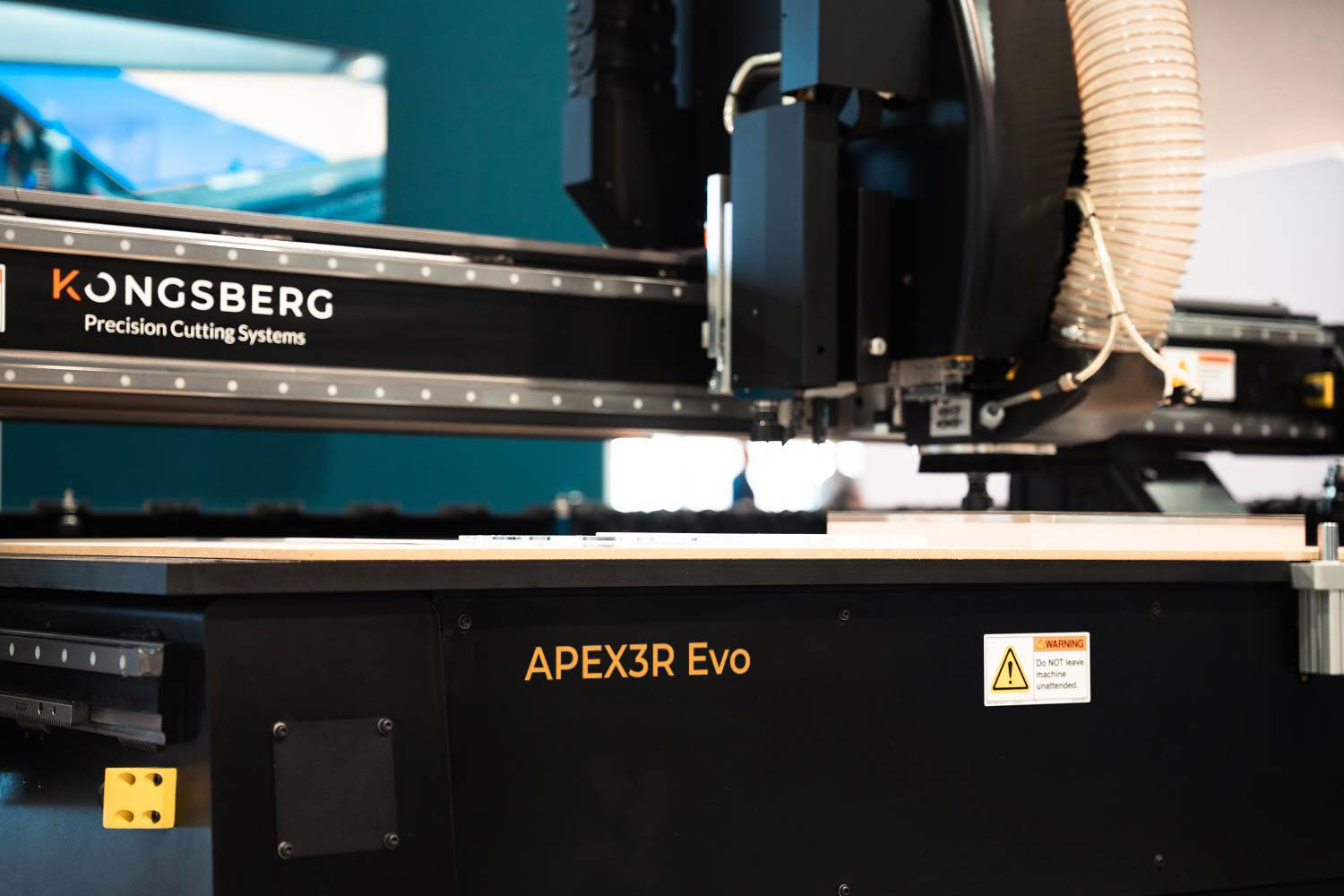

Kongsberg Apex3R Evo

Basic information

  • Table sizes:
    • 53” x 100”, 63” x 121”, 83” x 121"
    • 135 cm x 254 cm, 160 cm x 307 cm, 210 cm x 307 cm
  • 5.5 – 13.4 HP
  • Cut speed: 1,400 IPM / 35,6 m / min
  • Rapid traverse: 2,500 IPM (63,5 m / min)
  • Z-axis clearance: 6” – 8”
  • Repeatability: +/- 0.001” / 0,025 mm
  • Weight:
    • 3,150 to 4,400 lbs.
    • 1,428 to 1,995 kg
  • Standard work surface: 1” / 2,55 cm Phenolic
  • 25mm linear ball-bearing profile rails
  • Drive system X and Y-axis: rack and pinion
  • Drive system Z-axis: ball screw
  • (Features subject to change without notice)

Standard features

  • Heavy, all-steel tube frame construction
  • 25mm linear ball-bearing profile rails
  • EZ Control user-friendly operator interface
  • High-speed three axis motion control system
  • Unlimited file size transfer capabilities
  • Brushless digital AC servo drive system
  • EZ Suite Software
  • (Features subject to change without notice)

Options

  • Vacuum table and pumps
  • Wide range of spindle options
  • Linear automatic tool changer
  • CNC Knife with optional cutting heads
  • MultiVision™ Digital Registration System
  • Spindle options 4 HP to 13.3 HP
  • Coolant mist systems for non-ferrous metal cutting
  • Vision systems for print registration compensation
  • Tangential knife cutters
  • (Options subject to change without notice)
