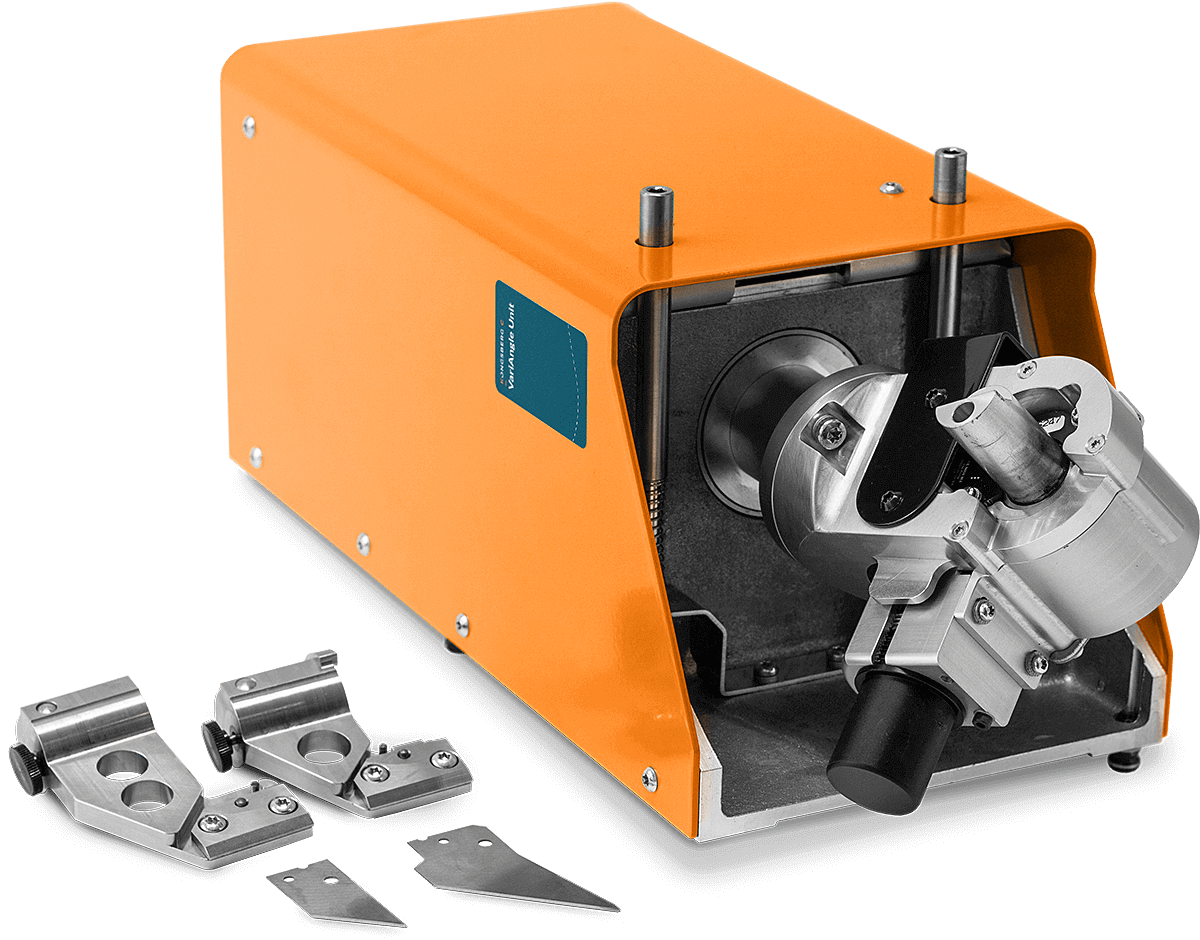

Variangle unit

A new and unique tool that will automatically adjust the cutting angle without the need to stop the production to change the tools.

Interested in this tool, or do you want to find out more about our impressive range of tools? Contact our specialists today!

Get in touch

What is it used for?

The VariAngle Unit offers the possibility to make straight-cuts (0°) and V-notch cuts of all angles between 0° and 60°, with increments of 0.5°. The tool automatically changes the knife angle based on information from the input file. The knife angle can be set in Esko ArtiosCAD as well as in iPC.



Benefits

The VariAngle is a new and unique tool that will automatically adjust the cutting angle (from vertical up to 60° cutting angles) without the need to stop the production to change the tools. This results in increased productivity.

  • Explore and validate new creative designs with a faster time to market and more efficient production.
  • Minimized operator involvement eliminates safety issues by decreasing handling of tools and blades.
Materials
  • All sorts of corrugated boards up to triple wall, paper core board, paper-based honeycomb, corrugated plastic, foam board and solid board.
  • Up to 60° in materials up to a thickness of 16 mm
  • Up to 45° in materials up to a thickness of 20 mm
  • Can cut straight (0°) in materials up to 30 mm in thickness
Requirements
  • Kongsberg C (Edge)
  • iPC version 2.4.1 or higher
